This is the documentation for ConfiForms Server/Data Center app


This tutorial is a bit advanced and requires you to understand some basic scripting concepts and be familiar with JavaScript and understand what REST APIs are


We will create OWN interface for ConfiForms form with own images and totally the way we want.


Here, we build a custom feedback form, with just 2 images


Thumbs up and thumbs down to capture user's feedback

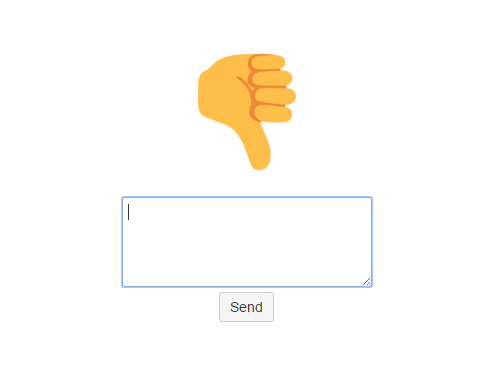

When a user clicks on "thumbs down" image then a textarea with an opportunity to provide some feedback text is given

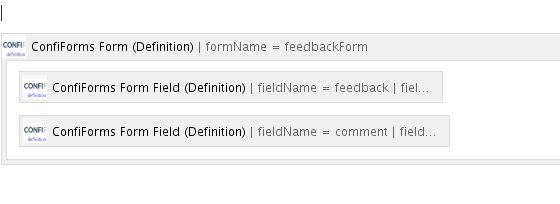

To support this, we have a ConfiForms Form configured as follows:

Just 2 fields:

  • feedback field of type "checkbox" to store "true/false" for the feedback give
  • comment field of type "textarea" to hold the comment text a user might give when "thumbs down" image is clicked

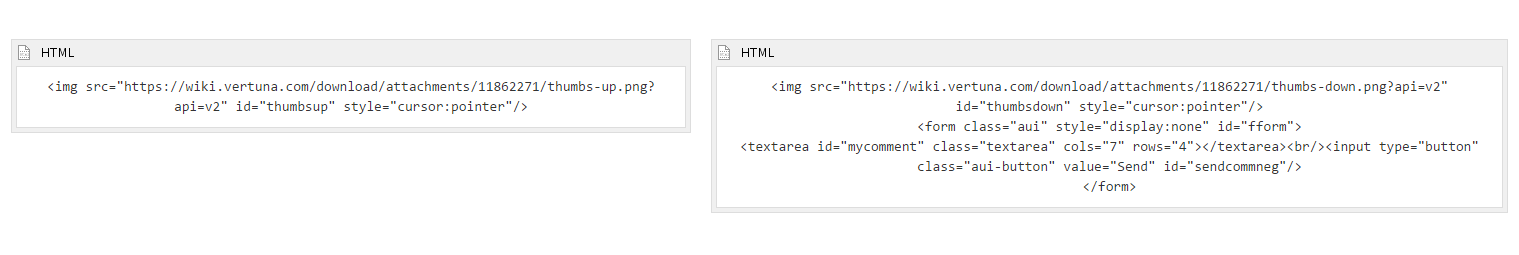

This is how we added "thumbs up" and "thumbs down" icons to the page

So, it is a custom HTML with some markup, left side is just an image and on the right side we have an image and a form with a field to type a comment

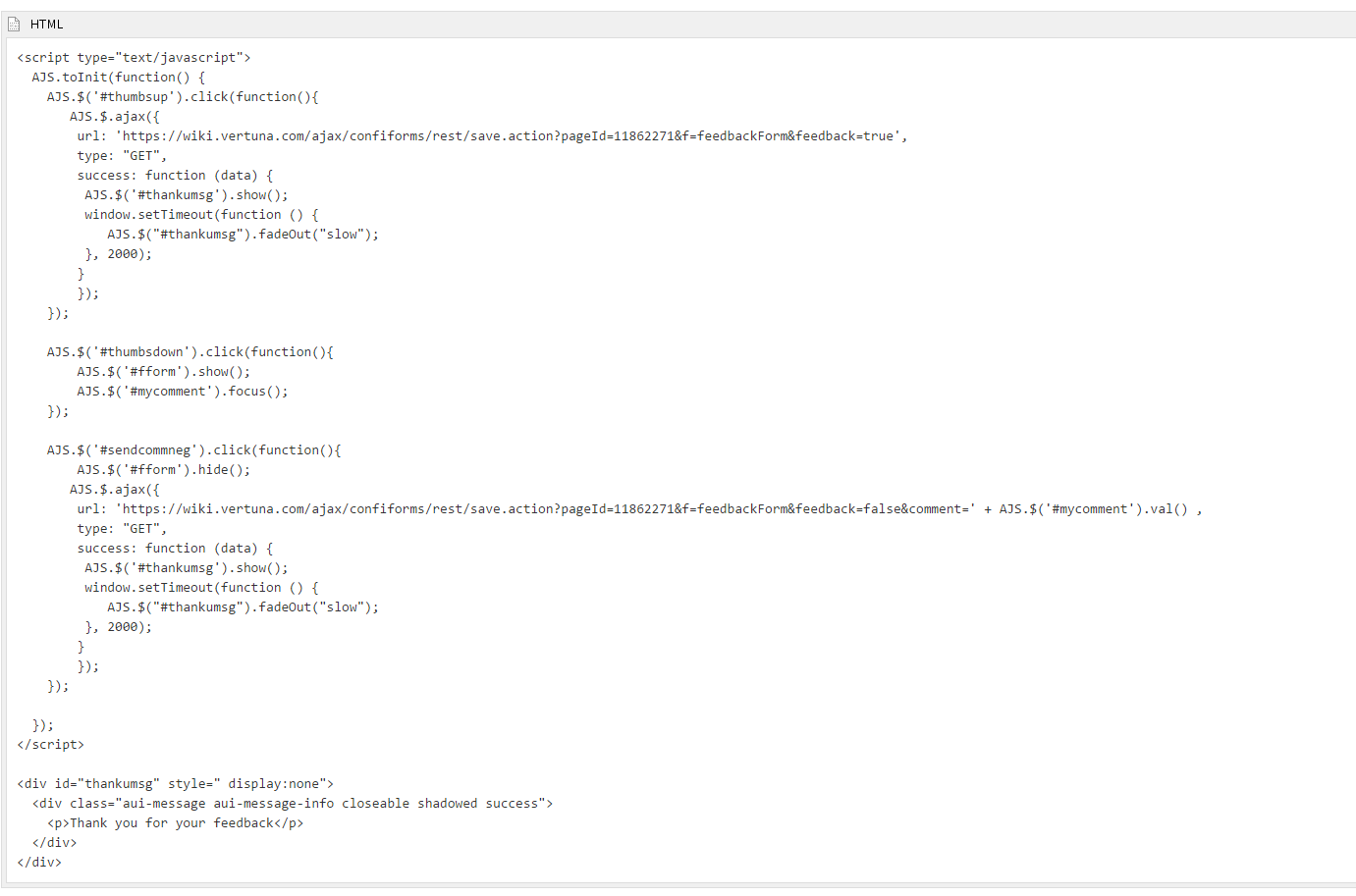

All the stuff is done with a javascript and ConfiForms REST API


Basically, we add "on click" handlers to images, and use ConfiForms RESt API to insert a record into a corresponding form.

Code is duplicated for each image handler for clarity


Full storage format could be found below:

 Click here to expand...
<ac:structured-macro ac:macro-id="016628d1-7649-46d0-9da1-738e6db4ef84" ac:name="confiform" ac:schema-version="1">
  <ac:parameter ac:name="formName">feedbackForm</ac:parameter>
  <ac:rich-text-body>
    <p>
      <ac:structured-macro ac:macro-id="bb62ec88-0a19-4c2f-a2a2-a041c9522d75" ac:name="confiform-field-definition" ac:schema-version="1">
        <ac:parameter ac:name="fieldName">feedback</ac:parameter>
        <ac:parameter ac:name="fieldLabel">Feedback</ac:parameter>
        <ac:parameter ac:name="values">good</ac:parameter>
        <ac:parameter ac:name="extras">bad</ac:parameter>
        <ac:parameter ac:name="type">checkbox</ac:parameter>
      </ac:structured-macro>
    </p>
    <p>
      <ac:structured-macro ac:macro-id="ce3fc87c-b3fd-457f-b7ae-cb050165be62" ac:name="confiform-field-definition" ac:schema-version="1">
        <ac:parameter ac:name="fieldName">comment</ac:parameter>
        <ac:parameter ac:name="fieldLabel">Comment</ac:parameter>
        <ac:parameter ac:name="type">textarea</ac:parameter>
      </ac:structured-macro>
    </p>
  </ac:rich-text-body>
</ac:structured-macro>
<table style="width: 100.0%;border: 0;">
  <tbody>
    <tr>
      <td style="text-align: center;border: 0;">
        <ac:structured-macro ac:macro-id="86a09ce9-422e-4bbd-9cd6-b74fafd4f9a1" ac:name="html" ac:schema-version="1">
          <ac:plain-text-body><![CDATA[<img src="https://wiki.vertuna.com/download/attachments/11862271/thumbs-up.png?api=v2" id="thumbsup" style="cursor:pointer"/>]]></ac:plain-text-body>
        </ac:structured-macro>
      </td>
      <td style="text-align: center;border: 0;">
        <ac:structured-macro ac:macro-id="fe93e240-e8d2-4e97-b73b-3a271c12cefa" ac:name="html" ac:schema-version="1">
          <ac:plain-text-body><![CDATA[<img src="https://wiki.vertuna.com/download/attachments/11862271/thumbs-down.png?api=v2" id="thumbsdown" style="cursor:pointer"/>
<form class="aui" style="display:none" id="fform">
<textarea id="mycomment" class="textarea" cols="7" rows="4"></textarea><br/><input type="button" class="aui-button" value="Send" id="sendcommneg"/>
</form>]]></ac:plain-text-body>
        </ac:structured-macro>
      </td>
    </tr>
  </tbody>
</table>
<ac:structured-macro ac:macro-id="a6aa6358-866e-432e-8a1e-c900fb56b0ce" ac:name="html" ac:schema-version="1">
  <ac:plain-text-body><![CDATA[<script type="text/javascript">
  AJS.toInit(function() {
	AJS.$('#thumbsup').click(function(){
       AJS.$.ajax({
        url: 'https://wiki.vertuna.com/ajax/confiforms/rest/save.action?pageId=11862271&f=feedbackForm&feedback=true',
        type: "GET",
        success: function (data) {
         AJS.$('#thankumsg').show();
		 window.setTimeout(function () {
  		 	AJS.$("#thankumsg").fadeOut("slow");
		 }, 2000);
        }
		});
    });

    AJS.$('#thumbsdown').click(function(){
    	AJS.$('#fform').show();
		AJS.$('#mycomment').focus();
    });

	AJS.$('#sendcommneg').click(function(){
		AJS.$('#fform').hide();
       AJS.$.ajax({
        url: 'https://wiki.vertuna.com/ajax/confiforms/rest/save.action?pageId=11862271&f=feedbackForm&feedback=false&comment=' + AJS.$('#mycomment').val() ,
        type: "GET",
        success: function (data) {
         AJS.$('#thankumsg').show();
		 window.setTimeout(function () {
  		 	AJS.$("#thankumsg").fadeOut("slow");
		 }, 2000);
        }
		});
    });

  });
</script>

<div id="thankumsg" style=" display:none">
  <div class="aui-message aui-message-info closeable shadowed success">
    <p>Thank you for your feedback</p>
  </div>
</div>]]></ac:plain-text-body>
</ac:structured-macro>
<p> </p>
<p> </p>
